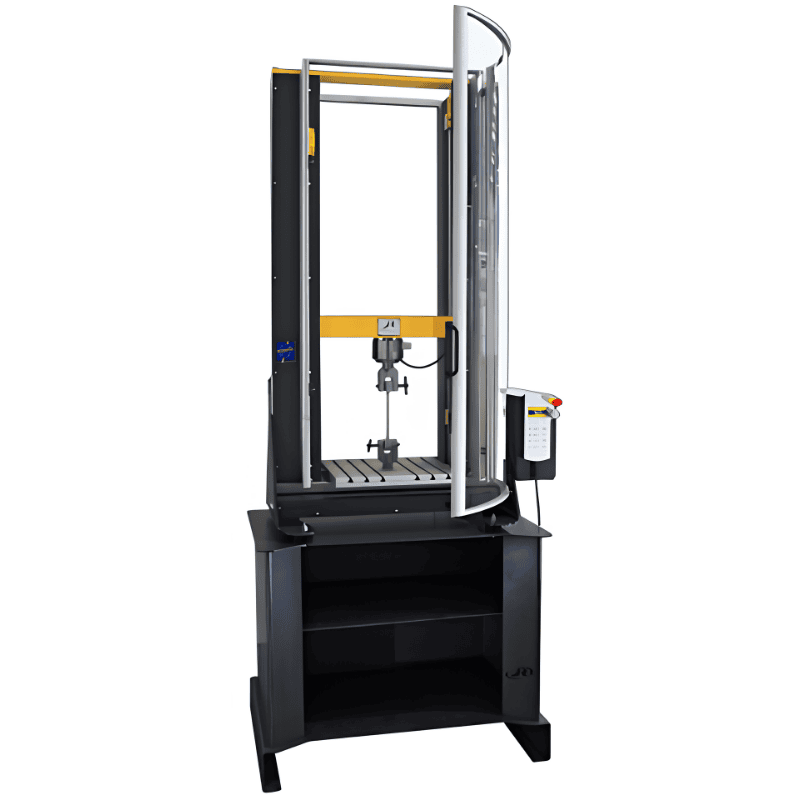

SYNTAX 12 Universal Testing Machine

The SYNTAX 12 is a universal testing machine with high frame rigidity designed for demanding tensile and compression tests. It is suitable for applications requiring high test forces in limited spaces, such as in the automotive, aerospace, and construction industries. It is controlled via the SYNT'X EVO software with up to 18 independent measurement channels.

Technical Data

• Capacity: 12 kN
• Frame stiffness: 20 kN/mm
• Two columns
• Accuracy: Class 1 (≥0.1% FS) / Class 0.5 (≥0.2% FS) ISO 7500-1
• Position resolution: 0.08 µm
• Speed: 3.3 µm/min to 1,200 mm/min at maximum load
• Travel: 1130 mm without load cell/adapter
• Weight: 145 kg
