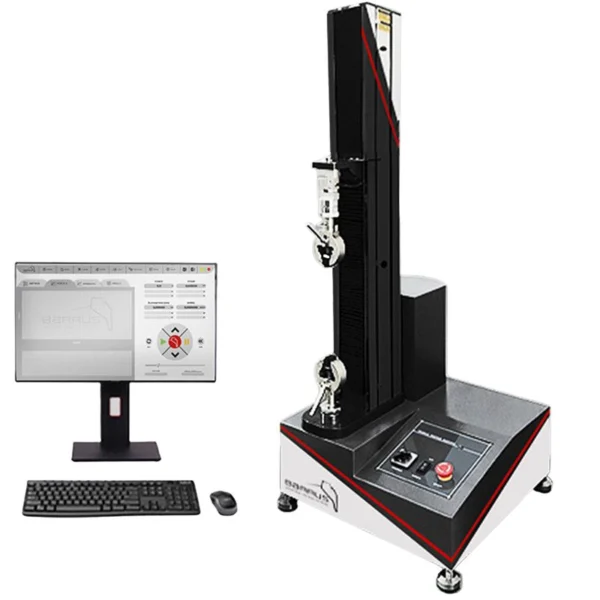

Barrus RED Single-Column Universal and Tensile Testing Machine
Unmatched precision and adaptability for the most demanding material testing applications
The Barrus RED universal and tensile testing machines redefine the industry standard for force measurement accuracy.
Powered by a servo motor drive, the Barrus RED offers force measurement accuracy of up to 0.5% and sub-micrometer strain measurement resolution, delivering unparalleled speed, force, and precision.Adaptable for a wide range of applications, these machines can be precisely configured with various load cells up to 5 kN to ensure task-specific accuracy.
Barrus RED machines are not only equipped with high-precision internal strain measurement systems; they also integrate seamlessly with external extensometers, including state-of-the-art video extensometers. This integration makes them uniquely versatile, ideal for testing a wide range of materials from elastomers and rubber to metals, where exact precision is of the utmost importance.
Manufacturer: Barrus Testing
Measuring range: ±5 kN
| Test force | ±5 N – 5 kN |
| Accuracy | ±0.5% / ± 1% |
| Speed | up to 1000 mm/min |
| Resolution of the length measurement system | 0.3 μm |
| Test height | 850 mm (1,500 mm optional) |
| Size | 58 × 58 × 125 cm |
| Weight | 80 kg |
| Control | PC with Ivory software |
